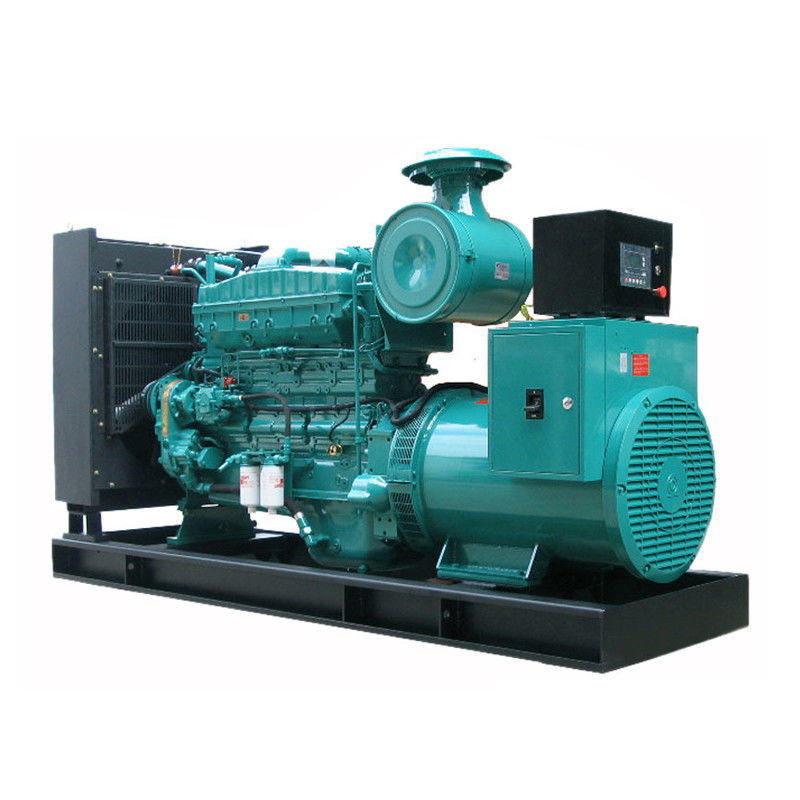

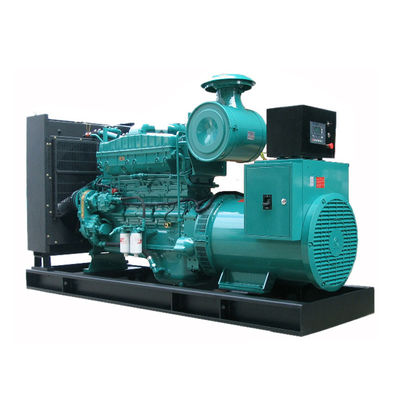

Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset

Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset

Merknaam:	Cummins
Modelnummer:	6LTAA8.9-G3
MOQ:	1 stc
Prijs:	Price:Negotiable
Betalingsvoorwaarden:	Western Union, T/T, D/P, L/C
Toeleveringsvermogen:	200 stcs/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

ISO 9001:14000,CE,EACC

Plaats van herkomst::

Jiangsu China

Merknaam::

Nominale spanning::

230V/400V

Motormodel::

CUMMINS 6LTAA8.9-G3

Nominale stroom::

Frequentie::

50Hz/60Hz

Alternator::

Stamford S4L1D-D41

Bedieningspaneel::

Deepsea / Harsen / SmartGen

Certificaat::

ISO 9001: 14000, CE

ATS::

Optioneel

Levering::

7-30 dagen

Garantietijd::

1 jaar

Genset -dimensie::

5000 × 2300 × 2650 mm

Genset -gewicht::

14000Kgs

Snelheid::

1500 tpm/1800 tpm

Modelnummer::

MB-240

Verpakking Details:

Plastic gewikkeld op houten dragers als consumentenvereisten. LCL, 20ft en 40ft zijn beschikbaar.

Levering vermogen:

200 stcs/maand

Productbeschrijving

High Quality Brushless Diesel Generator Sets With Cummins Engine Smartgen Control System Open/Soundproof Type

Genset Parameters

Genset
Model	MB-240
Output Power	300kVA/240KW
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	432A
Weight	3600KG
Dimensions	385013001850mm
Voltage	400/230
Frequency	50Hz
Diesel Engine
Manufacturer	Cummins Diesel Engine
Model	6LTAA8.9-G3
Rotate Speed	1500RPM
Power	230/250
Fuel Consumption	≤196g/kw.h
Lube Oil Capacity	27 L
Cylinder/Stroke	114×145 mm
Compression Ratio	16.6:1
Gas Displacement	8.9 L
Configuration	6-cylinder In-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Stamford Alternator
Model	S4L1D-D41
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Main Features
1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.

Mingbang Diesel Generator Set Factory

Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset 0

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!
