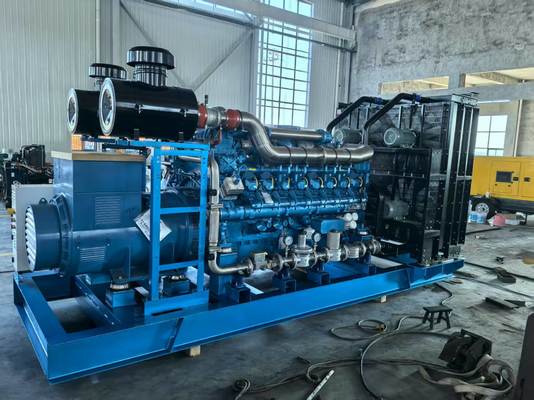

Open/Silent Diesel Generator Set 1000KW/1250KVA with Weichai 16M33D1280NG10 GAS Engine and Wuxi Stanford Alternator

Open/Silent Diesel Generator Set 1000KW/1250KVA with Weichai 16M33D1280NG10 GAS Engine and Wuxi Stanford Alternator

Merknaam:	Weichai engine
Modelnummer:	MB-50
MOQ:	1 stc
Prijs:	Price:Negotiable
Betalingsvoorwaarden:	Western Union, T/T, D/P, L/C
Toeleveringsvermogen:	200 stcs/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

ISO 9001:14000,CE,EACC

Merknaam::

Weichhai gasgenerator set

Motormodel::

16m33D1280ng10

Genset Power:

1000kw/1250kva

Nominale spanning::

230V/400V

Nominale stroom::

1800A

Frequentie::

50Hz

Alternator::

Leroy-Somer/ Wuxi Stanford

Bedieningspaneel::

Deepsea / Harsen / SmartGen

Certificaat::

ISO 9001: 14000, CE

ATS::

Optioneel

Levering::

7-30 dagen

Garantietijd::

1 jaar

Genset -dimensie::

5000 × 2150 × 2500 mm

Genset -gewicht::

7000 kg

Snelheid::

1500 tpm

Verpakking Details:

Plastic gewikkeld op houten dragers als consumentenvereisten. LCL, 20ft en 40ft zijn beschikbaar.

Levering vermogen:

200 stcs/maand

Markeren:

Open Silent Diesel Generator Set 1000KW

Weichai Engine Diesel Generator Set

Stanford Alternator Diesel Generator Set

Productbeschrijving

Weichai Engine 16M33D1280NG10 GAS generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset
Model	MB-1000
Output Power	1000KW/1250KVA
Power Factor	COSΦ=0.8(lagging)
Maximum Output Current	1800 A
Weight	5100KG
Silent Genset Dimensions	6000×2100×2700mm
Voltage	400/230
Frequency	50Hz
Gas Engine
Manufacturer	Weichai Gas engine
Model	16M33D1280NG10
Rotate Speed	1500RPM
Power	1280 KW
Fuel Consumption	≤198 g/kw.h
Cylinder/Stroke	150*180 mm
Configuration	16cylinders,V-engine, Turbocharged, Charge Air Cooled
Cooling Mode	Closed circuit water cooling
Speed Control System	Electronic Govenor
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Wuxi Stanford Intelligent Technology Co.Ltd
Model	STUC-80
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Open/Silent Diesel Generator Set 1000KW/1250KVA with Weichai 16M33D1280NG10 GAS Engine and Wuxi Stanford Alternator 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

Open/Silent Diesel Generator Set 1000KW/1250KVA with Weichai 16M33D1280NG10 GAS Engine and Wuxi Stanford Alternator 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

Open/Silent Diesel Generator Set 1000KW/1250KVA with Weichai 16M33D1280NG10 GAS Engine and Wuxi Stanford Alternator 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
